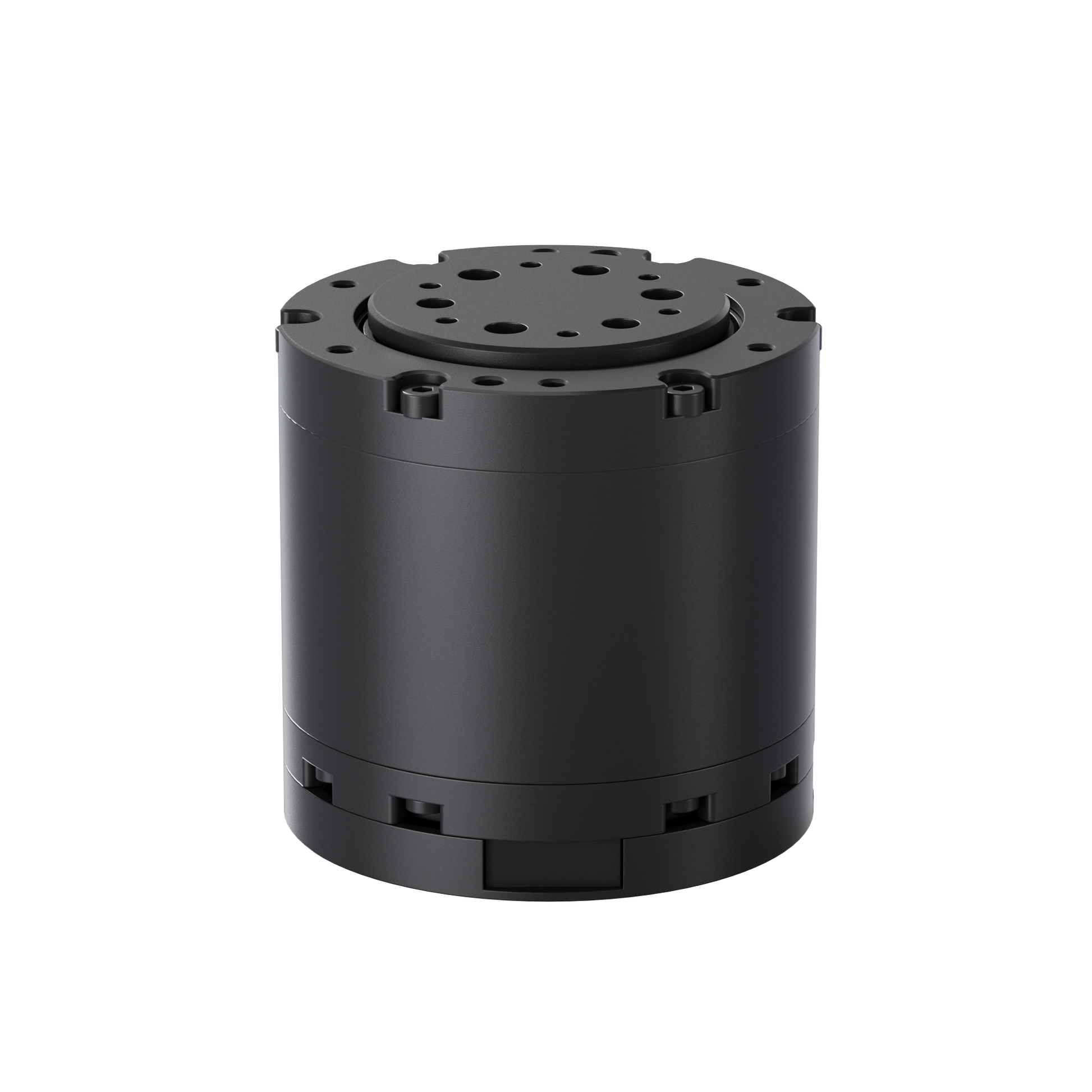

GF43X40-10

Compact Power for Tight Spaces

Ideal for space-constrained applications that still require meaningful payload capacity, delivering high torque density in a compact, lightweight package.

Technical Specifications

Specification

Value

Reduction Ratio

40:1

Rated Voltage

24 V

Rated Bus Current

2.3 A

Rated Phase Current

2 A

Rated Power

40 W

Rated Speed

43 rpm

Rated Torque

8.9 N·m

Peak Power

70 W

Peak Torque

23.5 N·m

Torque Constant

0.095 N·m/A

Backlash

15 arcmin

Weight

409 g

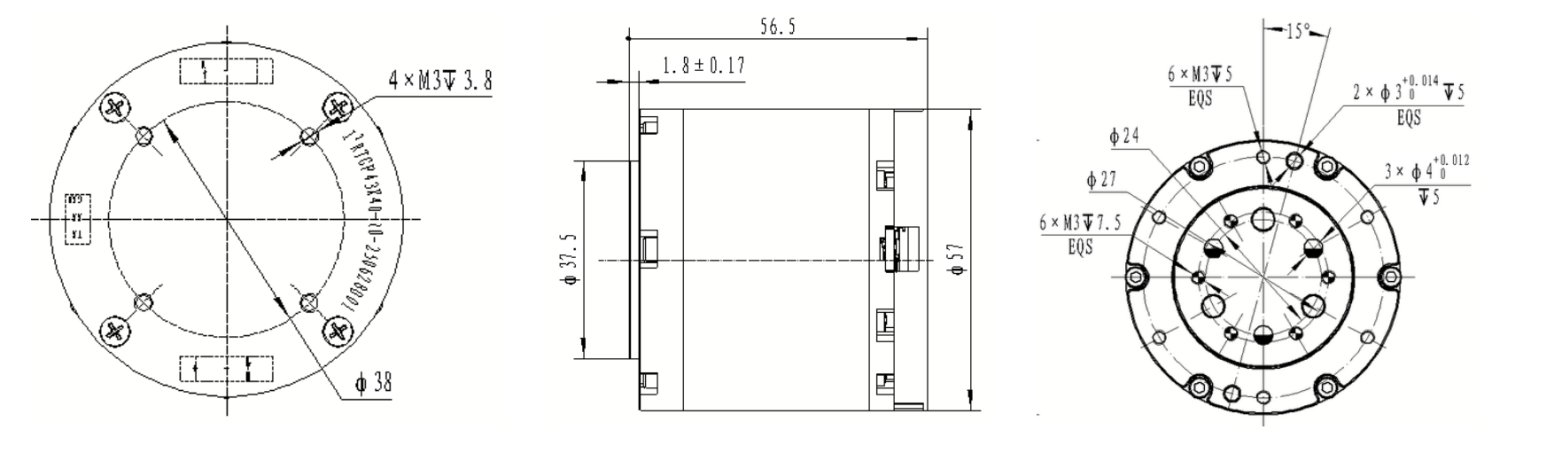

Dimensions

Ø57 × 56.5 mm

Communication

CAN



Price
$349.00
