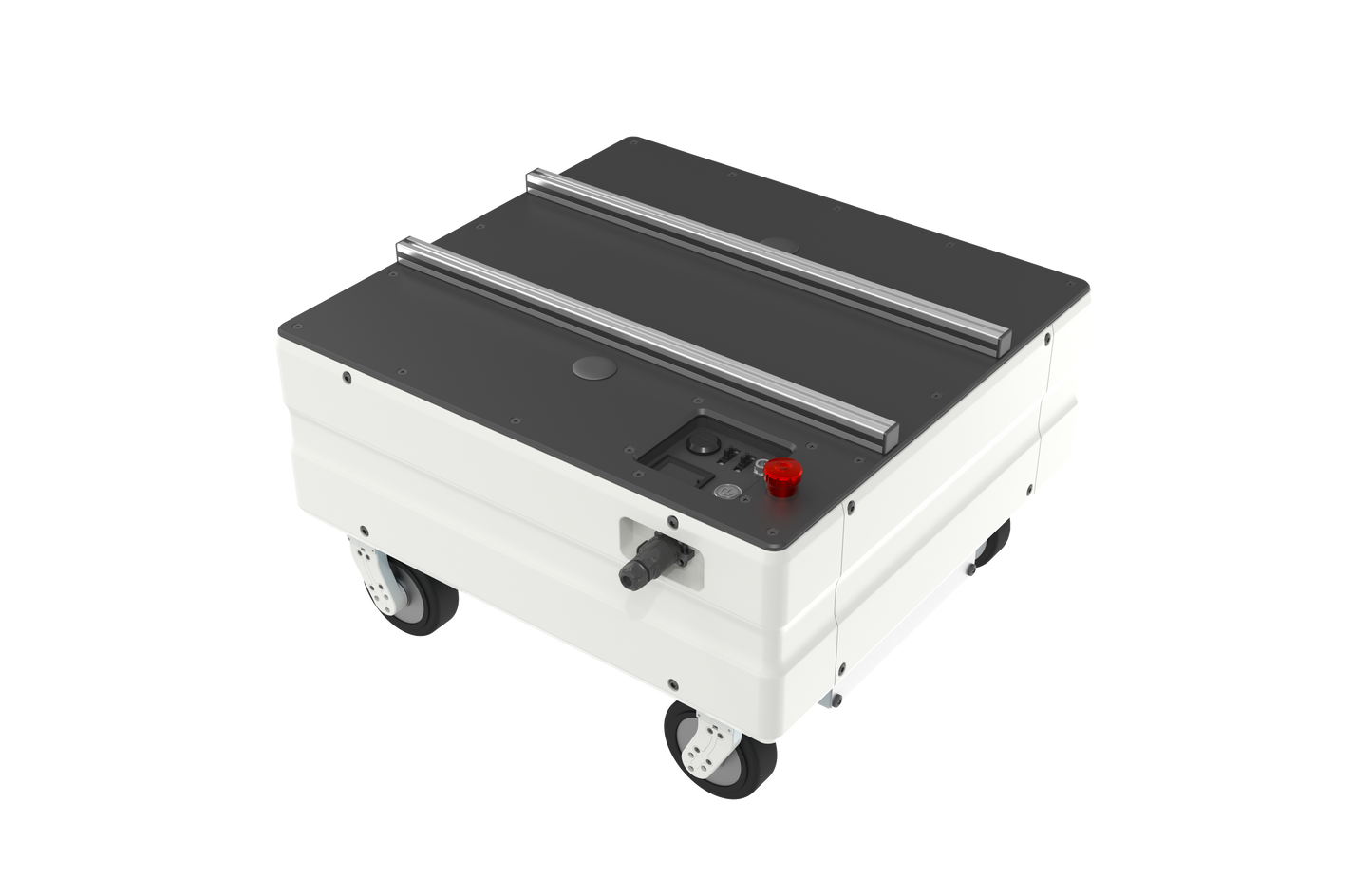

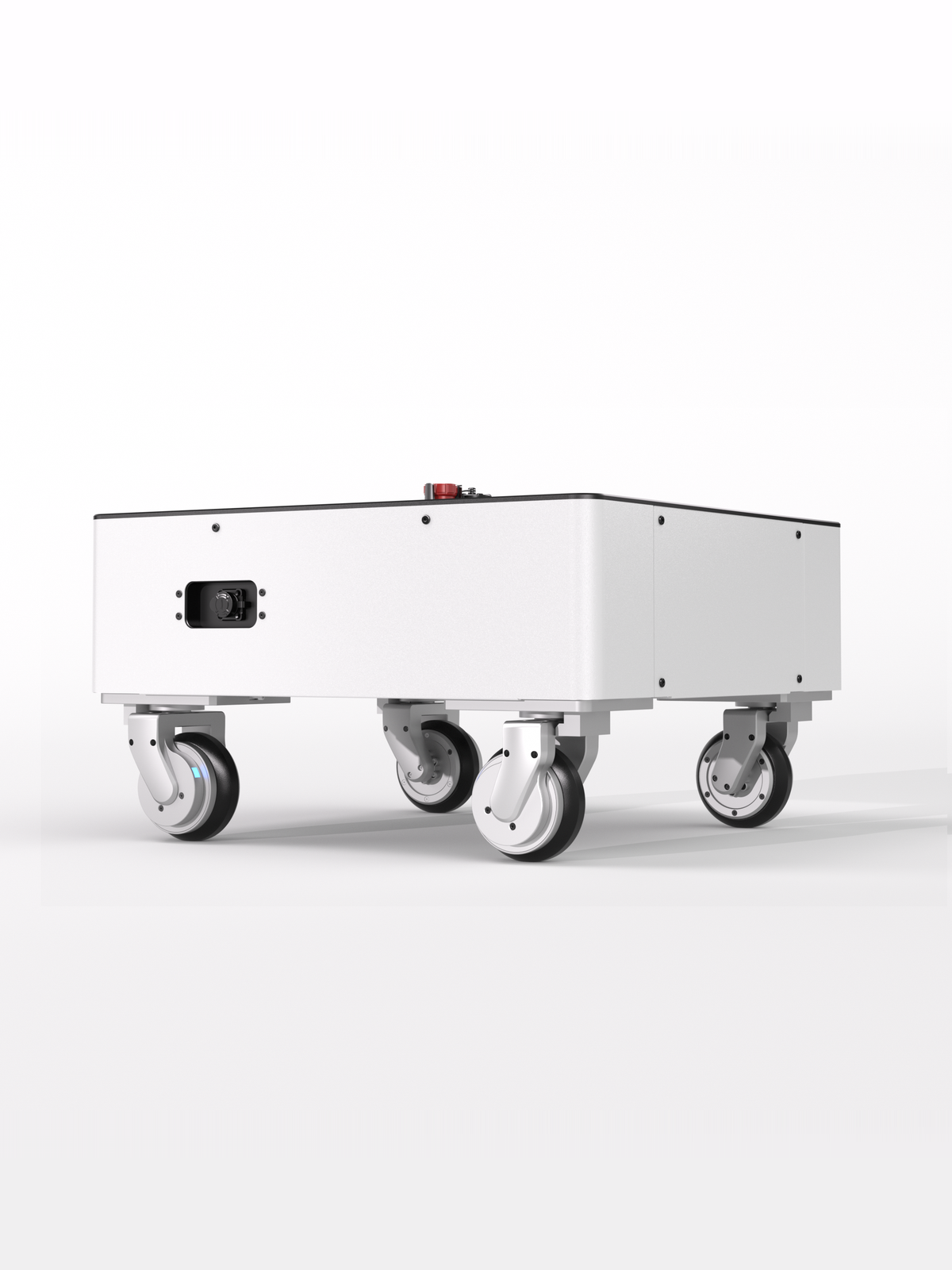

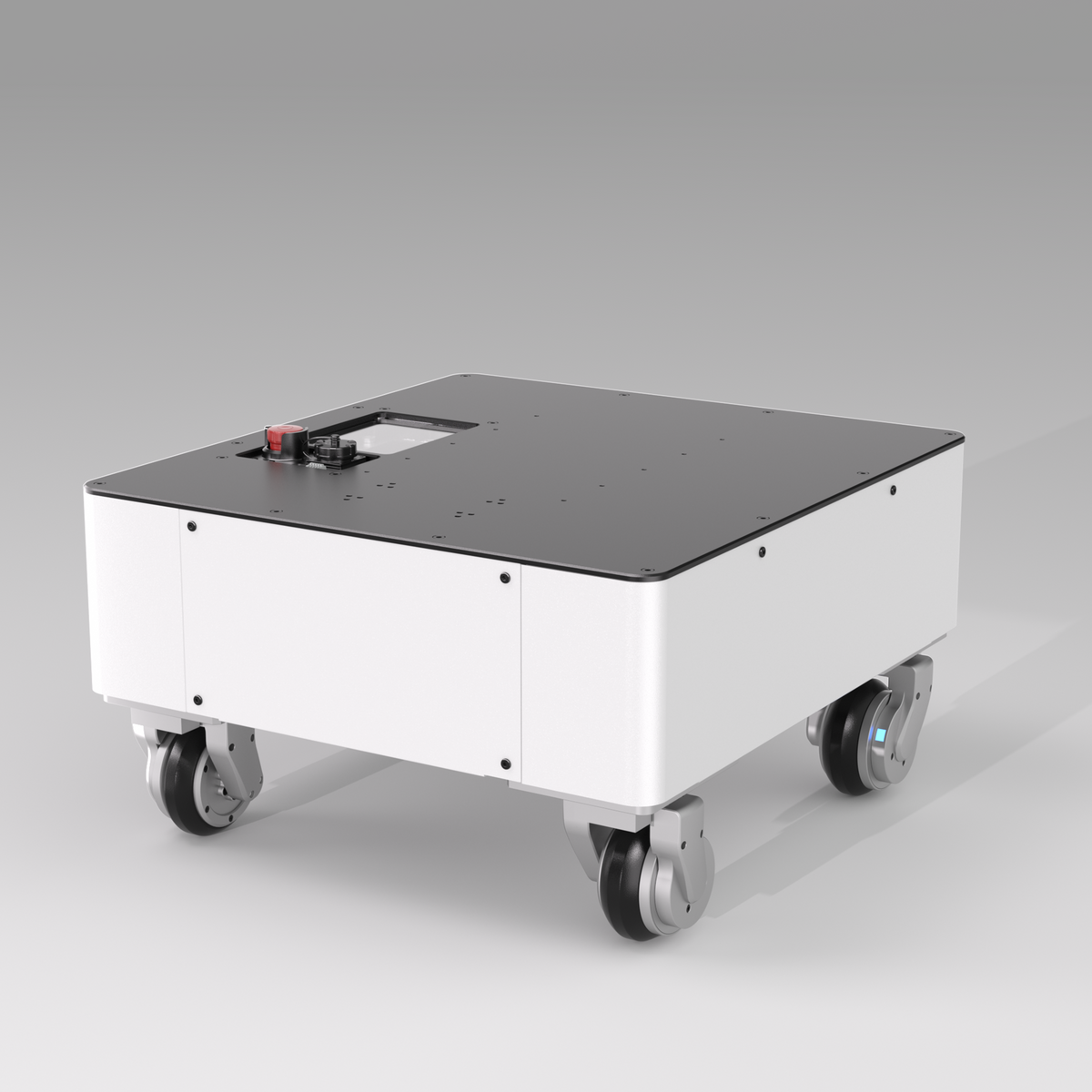

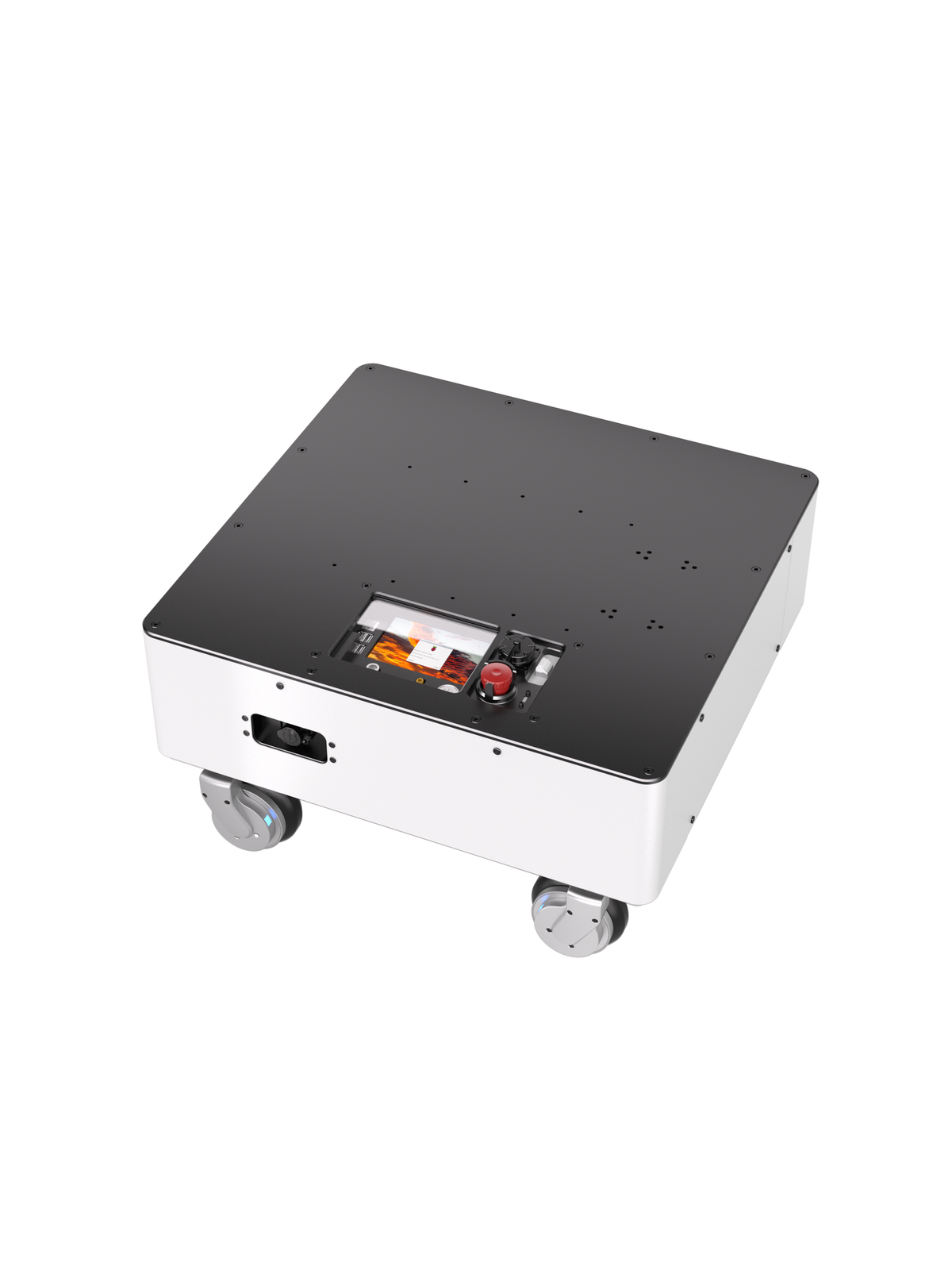

FLOW Holonomic Base V3
Lead Time: Current lead time: 3 weeks from order confirmation.
Product Description:
Experience unmatched agility and precision with FLOW - a mobile base designed for advanced robotic applications. The base is fully holonomic leveraging a powered caster design. Built with a robust frame and precision control systems, it supports high payload capacities up to 80 kg while maintaining stability and responsiveness.
Product Specification：
Weight (excluding battery)：Approximately 28.5 kg
Maximum load capacity：80 kg
Operating voltage：24 V (DC)
Reserved battery plug model：XT60
Maximum walking speed：630mm/s
Single-wheel peak torque：7 N·m
Steering mode：Omnidirectional
Communication method：CAN
Maximum load capacity：80 kg
Operating voltage：24 V (DC)
Reserved battery plug model：XT60
Maximum walking speed：630mm/s
Single-wheel peak torque：7 N·m
Steering mode：Omnidirectional
Communication method：CAN

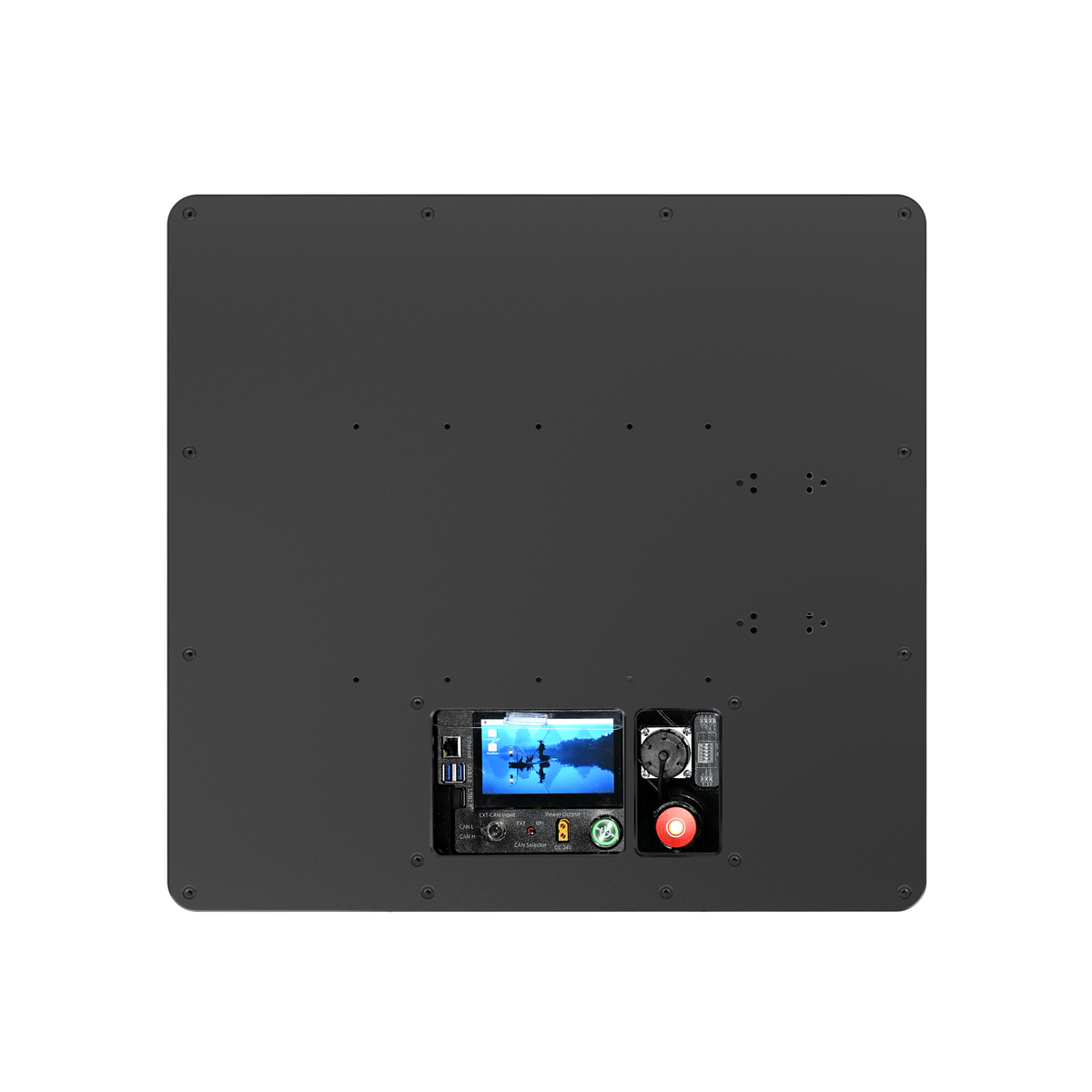

Chassis top mounting interface：Fixed position mounting holes
As indicated on our website, the battery is not included due to shipping requirements.

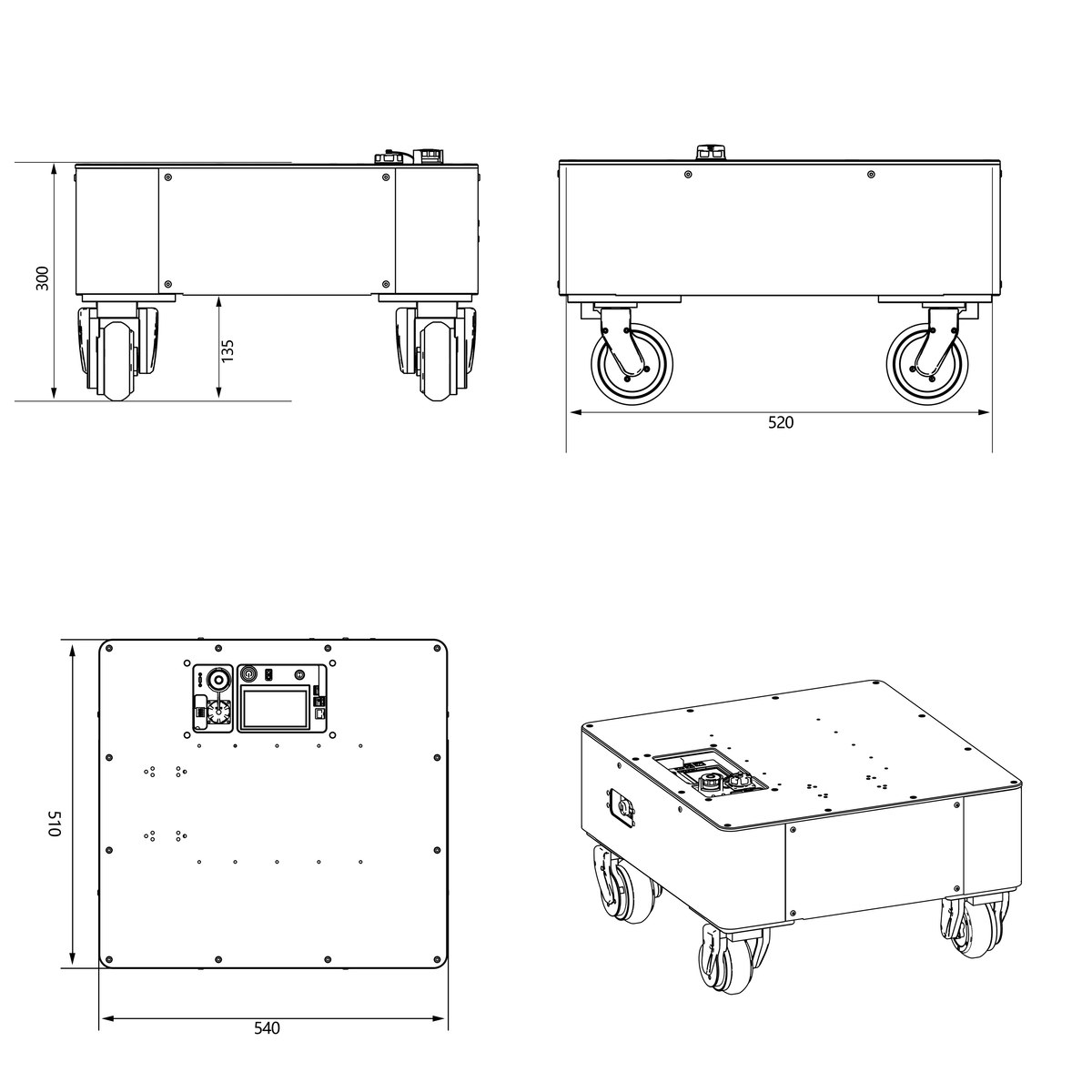

Chassis battery compartment max internal dimensions: 240 x 120 x 515 mm. Recommended Li-ion battery dimensions: 215 x 85 x 280 mm.
You can use any 24V battery such as this one.
User instructions click here.
Click here for more information.
If you have any questions about warranty-related matters, please refer to our Warranty Policy for more details.
Contact sales@i2rt.com for edu discounts and bulk-order pricing.
